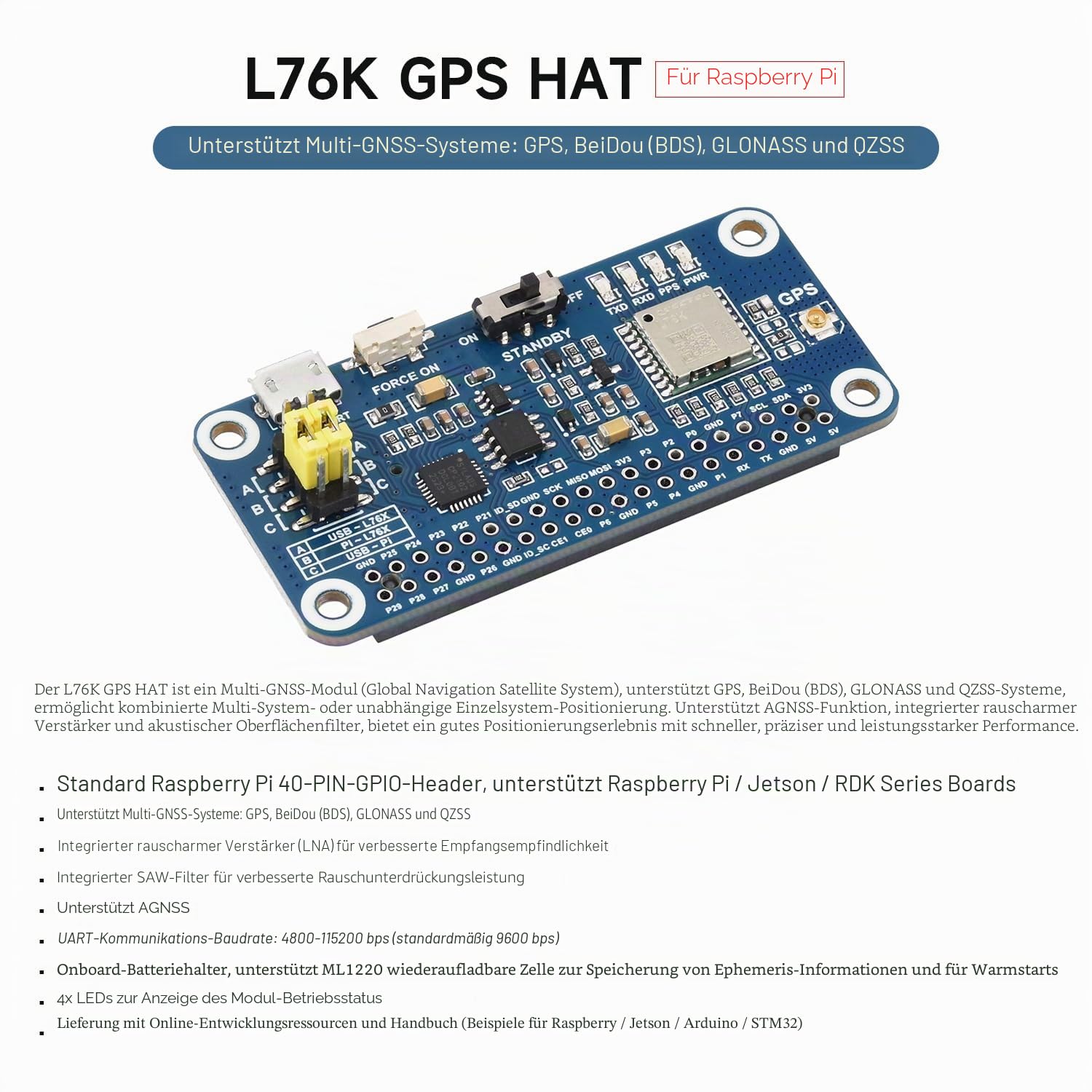

Waveshare L76K GPS HAT for Raspberry Pi, GPS/BeiDou (BDS) / GLONASS/QZSS Support
Product Overview
Marke: Waveshare
Kompatible Geräte: Raspberry Pi, Jetson, RDK series boards
Modellname: L76K
Hersteller: Waveshare
- L76K GPS HAT, a Multi-GNSS (Global Navigation Satellite System) module, supports GPS, BeiDou (BDS), GLONASS and QZSS systems, allows multi-system combined or single-system independent positioning. Supports AGNSS function, built-in low-noise amplifier and sound surface filter, provides a good positioning experience of fast, accurate, high-performance.
- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi / Jetson / RDK series boards. Supports Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS and QZSS
- Built-in Low-Noise Amplifier (LNA) for improved reception sensitivity. Built-in SAW Filter for enhanced noise reduction performance
- Supports AGNSS. UART communication baudrate: 4800~115200bps (9600bps by default). Onboard BAT holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
- 4x LEDs for indicating the module operating status. Can provide with online development resources and manual (examples for Raspberry / Jetson / STM32)
